LC LED-Q751TW4D: 4-PIN White
LED Lamps With 5mm Lens
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs
Compliant Part |
(5) Sun Light Viewable |
|
(2) 5mm Round
Water Clear Len |
(6) Rugged design suitable for both indoor
& outdoor use |
|
(3) Moisture
& UV Resistance Epoxy |
|
|
(4) Bin Sorted By
Color, Intensity & Vf |
|
Electro-optical
Characteristics (Ta = 250C)
|
PART NUMBER |
COLOR |
|
|
|
Peak |
VF (V) |
LUMINOUS |
||
|
|
|
|
(0C/W) |
(pF) F = 1MHZ |
(nm) |
TYP. |
MAX. |
Typ. |
Max. |
|
LC LED-Q751TW4D |
White |
50 |
130 |
1900 |
X
= 0.31 |
3.2 |
3.8 |
5,000 |
6,500 |
|
LC LED-Q751TB4D |
Blue |
50 |
130 |
1900 |
465 |
3.2 |
3.8 |
2,500 |
4,100 |
|
LC LED-Q751TG4D |
Green |
50 |
130 |
1900 |
525 |
3.2 |
3.8 |
4,000 |
6,800 |
|
LC LED-Q751TE4D |
Traffic
Green |
50 |
130 |
1900 |
505 |
3.2 |
3.8 |
4,000 |
6,800 |
|
LC LED-Q751JPF4D |
Red |
50 |
125 |
40 |
630 |
2.0 |
3.1 |
4,500 |
6,300 |
|
LC LED-Q751JPT4D |
Amber |
50 |
125 |
40 |
590 |
1.95 |
2.8 |
4,300 |
5,300 |
Absolute Maximum
Rating (Ta = 250C)
|
PARAMETER |
WHITE |
RED & AMBER |
BLUE, GREEN & TRAFFIC GREEN |
UNITS |
|
DC Forward Current |
20 |
50 |
30 |
mA |
|
Peak Pulse Forward Current (1) |
50 |
100 |
100 |
mA |
|
Reverse Voltage (IR
= 10mA) |
5 |
5 |
5 |
VR |
|
Operating Temperature |
-40
to +100 |
0C |
||
|
Storage Temperature |
-40
to +100 |
0C |
||
|
Lead Soldering Temperature |
2600C for 6 seconds (1.0mm or
0.63 inch from Body) |
|
||
(1) Pulse
Conditions of 1/10 duty cycle and 10msec max. width

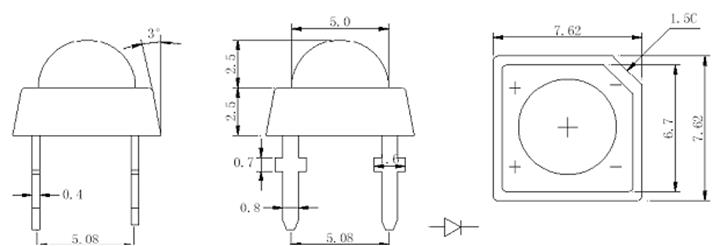

DEVICE
DRAWING
|
LC LED Corporation |
